Example 1


<definitions name="StockQuote" targetNamespace="http://example.com/stockquote.wsdl" xmlns:tns="http://example.com/stockquote.wsdl" xmlns:xsd1="http://example.com/stockquote.xsd" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns="http://schemas.xmlsoap.org/wsdl/" >
     <types>
          <schema targetNamespace="http://example.com/stockquote.xsd" xmlns="http://www.w3.org/2000/10/XMLSchema" >
               <element name="TradePriceRequest">
                    <complexType>
                         <all>
                              <element name="tickerSymbol" type="string"/>
                         </all>
                    </complexType>
               </element>
               <element name="TradePrice">
                    <complexType>
                         <all>
                              <element name="price" type="float"/>
                         </all>
                    </complexType>
               </element>
          </schema>
     </types>
     <message name="GetLastTradePriceInput">
          <part name="body" element="xsd1:TradePriceRequest"/>
     </message>
     <message name="GetLastTradePriceOutput">
          <part name="body" element="xsd1:TradePrice"/>
     </message>
     <portType name="StockQuotePortType">
          <operation name="GetLastTradePrice">
               <input message="tns:GetLastTradePriceInput"/>
               <output message="tns:GetLastTradePriceOutput"/>
          </operation>
     </portType>
     <binding name="StockQuoteSoapBinding" type="tns:StockQuotePortType">
          <soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/>
          <operation name="GetLastTradePrice">
               <soap:operation soapAction="http://example.com/GetLastTradePrice"/>
               <input>
                    <soap:body use="literal"/>
               </input>
               <output>
                    <soap:body use="literal"/>
               </output>
          </operation>
     </binding>
     <service name="StockQuoteService">
          <documentation>My first service
          </documentation>
          <port name="StockQuotePort" binding="tns:StockQuoteBinding">
               <soap:address location="http://example.com/stockquote"/>
          </port>
     </service>
</definitions>

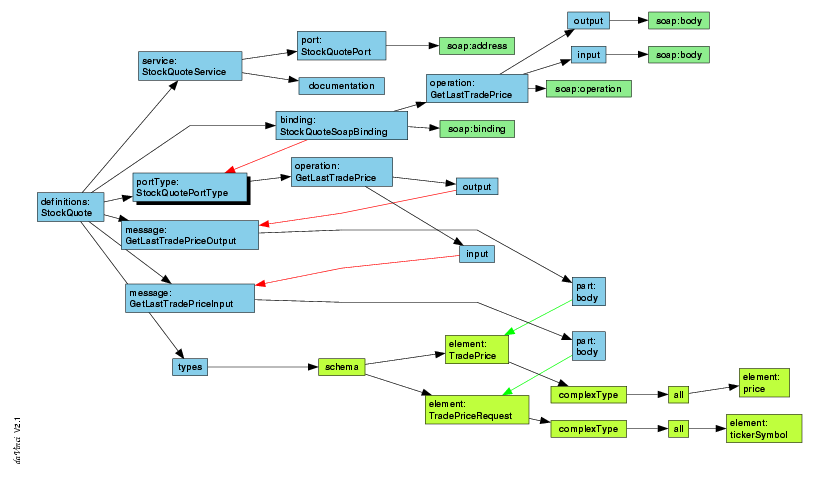

Example as a graphGraph
